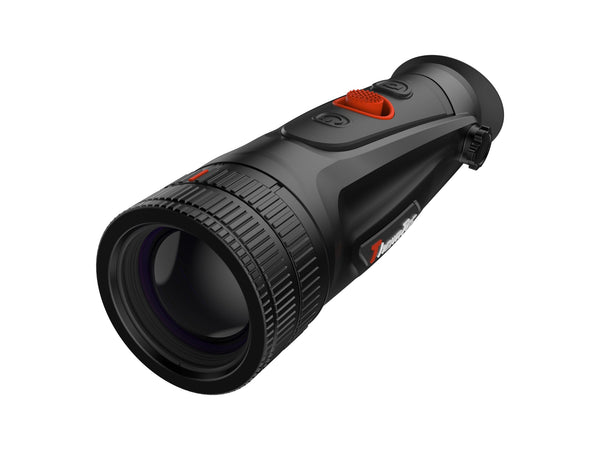

ThermTec CP640 Cyclops Dual 20-40mm 50hz Handheld Thermal Monocular
Introducing the ThermTec Cyclops-D CP640D Thermal Monocular, the worlds most advance and versatile device. The Cyclops-D series offers users a market leading dual field of view system allowing the user to switch between lens systems with the twist of a dial, a <25mk thermal sensor for crystal clear imagery in the field and an ergonomic joystick for ease of use in the field. The ThermTec-D Cyclops CP640D offers users a 20mm and 40mm dual lens system combined with a 640px thermal sensor to deliver outstanding value for money.
Duel Lens System
The Cyclops-D CP640D Thermal Monocular comes with a dual-lens system allowing the user to switch from a 20mm lens to a 40mm lens with the turn of a wheel.
- The 20mm lens gives the user a wide field of view
- The 40mm lens allows for long-range detection and identification of any target
Two Image Modes
Designed with both WDR mode and target mode, the ThermTec Cyclops-D series captures details clearly under different scenarios as needed. WDR Mode is suitable for high-contrast lighting conditions, while Target Mode helps you to focus more on your targets.
Highly Sensitive Sensor
Equipped with a F1.0 lens and a highly sensitive thermal sensor with NETD=25mK, the thermal imager delivers unparalleled quality and detail. Its high-contrast imagery provides users with informative visuals, even in challenging conditions like rain or fog, where temperature contrasts are minimal.
High Precision Zoom
1.0-6.0X HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification.
12 Hours of Work on a Single Charge
Up to 12 hour of active use. No more lost exciting moments due to drained batteries.
Joystick Control
The well-designed joystick performs an easy operation on menu operations by toggling the button in any direction.
Intelligent AI Ranging
Based on deep learning algorithm, the monocular is able to automatically measure the object distance. With the new feature of setting target type and size, the accuracy of AI ranging has been greatly improved.
More Features for ThermTec CP640 Cyclopes Dual 20-40mm 50hz Handheld Thermal Monocular:
- 1024 OLED Display: Featuring a 1024 OLED display, providing sharp and smooth images observing, ensures perfect detail recognition.
- Light and Handy: The compact dimension makes it a lightweight and handy companion wherever you go.
- Target Outline Mode: The Outline Mode is developed to offer a new choice of visual experience, enabling you to have a clear clue of your target, while reducing the strong light contrast to your eyes in darkness.
- Two Way Wi-Fi Connection: Support both Wi-Fi and hotspot connections; Real-time image transmission
- Real-time APP Notification: The “Smart Thermal” APP can instantly pop up a notification while the monocular detecting and identifying the target to avoid any distraction.
- IP67 Waterproof: Provided with IP67-rated weatherproof performance, it is protected from heavy rainfall, snow, smoke, smog, or dust.
Specifications for ThermTec CP640 Cyclopes Dual 20-40mm 50hz Handheld Thermal Monocular:
- Resolution: 640x512
- Pixel Pitch: 12µm
- NETD: 25mk@300k
- Spectral Range: 8-14µm
- Frame Rate: 50HZ
- Objective Lens: 20/40 F1.0 Dual FOV
- Field of View: 21.7°x17.5° / 11.0°x8.8°
- Magnification: 1.1X-2.2X
- Digital Zoom: 1-6X continuous zoom
- Eye Relief: 40mm
- Exit Pupil: 6mm
- Diopter: ±5D
- Display Type: AMOLED
- Display Resolution: 1024x768
- Display Size: 0.39 inch
- Colour Palette: 6
- Image Model: WDR (Wide Dynamic Range) Mode; Object Mode (Object enhanced)
- Reticle: 7, adjustment coordinates
- Languages: Multiple
- Built in Memory: 32GB
- AI/MIL Distance Measurement: Yes
- Heat Track: Yes
- PIP: Yes
- GPS: Yes
- Real-Time Notification: Yes
- Internal Battery: Internal high capacity lithium ion (18650x2)\
- WI-FI: Two-way Wi-Fi connection; App remote control
- Working Temperature: -20C—+50C
- Protection Level: IP67
- Weight: 550 g
- Size: 200x66x62 (mm)
