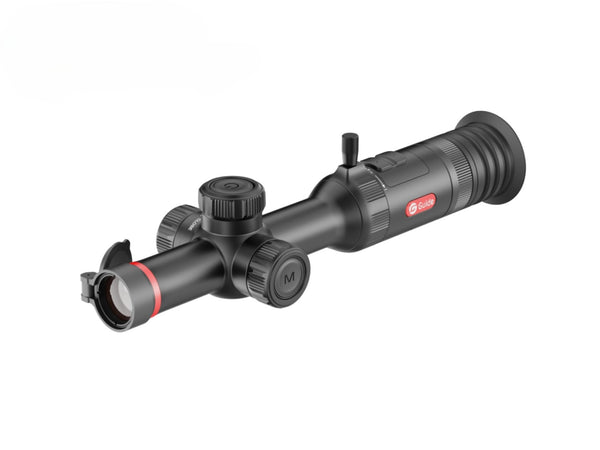

Guide TU425SE 3.0 400x300 25mm Thermal Scope

Pulsar Thermion 2 XL60 2.5-20x Thermal Scope and Laser Rangefinder

High Base Magnification

The Thermion 2 LRF XL60 boasts an impressive 2.5x base magnification with a maximum of up to 20x, providing precision and clarity for long-range shooting. With its 60mm lens, the new Thermion offers a wider field of view, enhancing situational awareness and presenting more potential target opportunities to the keen-eyed hunter. Whether spotting or engaging targets, this scope ensures unparalleled accuracy at extreme distances.

Customizable User Mode for Individual Image Adjustment

Optimize image quality for any observation conditions with brightness and contrast adjustments, enhancing detail and clarity. The User Mode function saves your preferred settings, ensuring the thermal imager delivers optimal performance right from the start without the need for readjustments.

Extra-Long Detection Range

The Thermion 2 LRF XL60 is capable of detecting heat signatures up to an extraordinary 3,062 yards away. With its superior optics and advanced thermal technology, the Thermion 2 LRF XL60 ensures no target goes unnoticed at extreme ranges. This makes it ideal for hunting across vast, open plains or for predator control in pastures or barren prairies, where hunters have a wide field of view.

Crisp 2560x2560 Micro-OLED Display

Experience unmatched clarity with Pulsar’s highest-resolution display yet. The 2560x2560 Micro-OLED screen delivers sharp, vivid visuals for precise target identification and greater situational awareness, making every detail crystal clear

Flexible Set of Color Palettes for Various Needs

The Thermion 60 series’ 2560x2560 Micro-OLED display has enhanced color rendering, power saving, high contrast and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions. A choice of 8 color palettes lets the users observe their field of view more effectively, allowing them to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Combined Duel Battery System

The Thermion 2 is powered by both an internal and an external battery, both of which are rechargeable. The package includes replaceable batteries with 2 A·h and 3.2 A·h capacities, providing up to 10 hours of continuous operation on a single charge. Embossed markings on the replaceable batteries allow for quick and confident battery swaps, even in complete darkness, by touch alone.

More Features for Pulsar Thermion 2 XL60 2.5-20x Thermal Scope and Laser Rangefinder:

• Mounts on Standard 30mm Rings: The Thermion offers visual aesthetics combined with convenience. Mounted with standard 30mm rings, this unit does not require any special mounting hardware and can be easily swapped out for an existing daytime scope.
• High-Caliber Recoil Resistance: Engineered to withstand the recoil of heavy calibers, the Thermion 2 LRF is rated for 12-gauge shotguns and .375 H&H rifles, offering durability and performance under the harshest conditions.
• 10 Shooting Profiles / 100 Zeroing Distances: Zeroing settings are saved in a shooting profile. The Thermion 2’s memory contains up to 10 shooting profiles for several types of weapons or cartridges. Each profile holds up to 10 zeroing distances input manually, but can be transformed into automatic ballistic calculations based on measured distance using the Stream Vision ballistics app.
• High-Precision Aiming in "Picture-in-Picture" Mode: The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to see the image in the aiming area and have visual control of the entire field of view at the same time.
• Operation in Extreme Temperatures -25 to +50 Degrees: The housing, power unit, optics and electronic components of the Thermion 2 are designed to operate in a wide range of temperatures and adverse environmental conditions. The Thermion 2 ensures reliable and effective performance in freezing cold up to -25°C.
• Stream Vision 2. Wi-Fi Integration with IOS and Android Devices: Built-in Wi-Fi connects the Thermion 2 LRF 60 series riflescope to Android and iOS devices through the Stream Vision 2 app, enabling wireless updates, real-time image streaming, remote control, and easy sharing of photos and videos. Registered users also get 16 GB of free cloud storage for their recordings and access to the latest Pulsar updates.

Specifications for Pulsar Thermion 2 XL60 2.5-20x Thermal Scope and Laser Rangefinder:

Main

• Sensor: 1024x768 @ 12 µm (NETD <35 mK)
• Objective Lens: F60 / 1.0
• Magnifications: 2.5 – 20
• Field of View (HxV) Degrees / m@100m: 11.7° / 20.5 m
• Detection Range (m): 2800

Sensor

• Type: uncooled
• Resolution, pixels: 1024x768
• Pixel Pitch: 12
• NETD, mk: <35
• Frame Rate, HZ: 50

Optics

• Objective Lens: F60 / 1.0
• Magnification: 2.5 – 20
• Field of view (HxV), degrees / m @ 100 m: 11.7° / 20.5 m
• Eye Relief: 65

Display

• Type: AMOLED
• Resolution, pixels: 2560x2560

Laser Rangefinder

• Safety class for laser equipment according to IEC 60825-1:2014: 1
• Wavelength, nm: 905
• Max. measuring range,m: 800
• Measurement accuracy, m: ± 1

Reticle

• Click value, H/V, mm at 100 m: 16 / 16
• Click range, H/V, mm at 100 m: 3200 / 3200
• Number of preloaded reticles: Software defined

Video Recorder

• Video / photo resolution, pixel: 2560x2560
• Video / photo format: .mp4 / .jpg
• Built-in memory, GB: 64

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac

Power Supply

• Output voltage, V: 5.0V / 9V
• Battery type: Built-in + replaceable APS3 B-pack
• Battery life, hours: 7

Environmental Characteristics

• Degree of protection, IP code (IEC60529): IPX7
• Operating temperature range, °?: -25 – +50

Weight & Size

• Body material: Metal
• Dimensions, mm: 442x84x98
• Weight, kg: 1.16

Pulsar Merger XT50 Thermal Binoculars with Laser Rangefinder

Thermal performance with class.

The Pulsar Merger LRF represents Pulsar's classic thermal imaging binocular design with an integrated laser rangefinder.

These binoculars are remarkably ergonomic and comfortable. They allow for two-eye observation and reduce eye fatigue. They are equipped with top-tier components that exemplify European quality.

The Merger LRF XT50 is the first pair of thermal imaging binoculars from Pulsar to feature a remarkable 1280×1024, 12µm, <40mK NETD thermal sensor and built-in image stabilisation. These features lend another level of clarity and stability and provide greater observation opportunities without any distractions. Fully kitted out with a wide range of digital functionalities and connectivity options, including a built-in still image and video recorder, Stream Vision 2 compatibility, and a precision laser rangefinder, these binoculars are perfect for long-range, comfortable observation.

Features

European made thermal imaging sensors

Merger LRF Series ensures unrivalled thermal imaging experience. For image capture Merger binoculars use professional-grade, European made thermal imaging sensors:

• 12 micron sensors 1280×1024 and 1024×768 offer high definition image quality.
• 17 micron sensors 640×480 and 384×288 provide extreme thermal sensitivity.

Detailed and sharp image on high zoom

Optical magnification of the unit can be increased by means of digital zoom. Even at the highest level of zoom image detail is sufficient for identifying the smallest object details. Advanced algorithms enhance image quality and help to achieve sharp and detailed image.

Wide field of view

Wide field of view simplifies scanning and spotting hot objects while minimizing effects of image shaking and raising situational awareness. Excellent image detail on base magnification combined with wide field of view ensure improved viewing comfort and scene perception.

Extra-long detection range

Powerful germanium optics combined with professional thermal imaging sensors provide exceptional detection capabilities. Top Merger LRF units can detect hot objects at distances exceeding 2km.

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device’s memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Classic binocular design

Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch.

Comfortable viewing experience with both eyes

The Merger LRF binoculars’ optical design takes into account the nature of human vision. It is natural for a person to receive visual information through two visual channels simultaneously. Viewing with two eyes is less tiring than viewing with one. This means better detection of small or faint objects, and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The interpupillary distance in the Merger LRF binoculars is adjustable from 63 to 74 mm in accordance with the individual characteristics of a particular user.

Precise laser rangefinder

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

Combined dual battery system

The Merger LRF Series is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees long battery life.

Other Features

• High-quality reinforced magnesium alloy housing
• Built-in photo and video recorder
• Stream Vision 2. Wi-Fi integration with iOS and Android devices
• Improved Wi-Fi connectivity with 2.4 / 5 GHZ waveband support
• High-contrast HD AMOLED displays
• IPX7 Waterproof Rated
• Wide range of operating temperatures (-25 to +50°C)
• A selection of 8 color palettes
• Proximity sensor
• Picture in Picture
• 3 Sensitivity enhancement levels
• Fast aperture F1.0 optics

Specifications

• Main
• Sensor: 1280x1024 @ 12 µm
• Objective lens: F50 / 1.0
• Magnification, x: 2 – 16
• FOV (HxV), degrees: 17.5 х 14
• FOV (HxV), m@100m: 30.7 х 24
• Detection range: 2300 m

Sensor

• Type: uncooled
• Resolution, pixels: 1280x1024
• Pixel pitch, µm: 12
• Sensor NETD, mK: < 40
• Frame rate, Hz: 50

Optics

• Objective lens: F50 / 1.0
• Magnification, x: 2 – 16
• FOV (HxV), m@100m: 30.7 х 24
• FOV (HxV), degrees: 17.5 х 14
• Interpupillary distance adjustment, mm: 62 – 74
• Eye relief, mm: 15

Display

• Type: AMOLED HD
• Resolution, pixels: 1280х960

Laser rangefinder

• Max. measuring range, m: 1500
• Measurement accuracy, m: ± 1
• Safety class for laser equipment according to IEC 60825-1:2014: 1
• Wavelength, nm: 905

Video recorder

• Video / photo resultion, pixel: 1280х960
• Video / photo format: .mp4 / .jpg
• Build-in memory, GB: 64

WI-FI

• Wireless protocol: Wi-Fi
• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, Ghz: 2.4 / 5

Environmental characteristics

• Degree of protection IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range, °С: -25 – +50

Connections and compatibilities

• Mount type: 1/4" socket
• Supported application: Stream Vision 2

Power supply

• Output voltage, V: 3.7
• Battery type: Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
• Capacity, mAh: 3200 (external) + 4000 (internal)
• Operating time on battery pack, h at t=22°С: 8
• External power supply, V: 5V; 9V (USB Type-C Power Delivery)

Weight & size

• Body material: Magnesium alloy
• Dimensions, mm: 197x140x72
• Weight, kg: 0.95 (batteries included)
• SKU: 77486

The first thermal imaging riflescope with classic design and built-in laser rangefinder

The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 metres – the Thermion 2 LRF provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.

Features:
• Variable magnification
• High-precision aiming in the "Picture-in-picture" mode
• 5 individual shooting profiles / 50 zeroing distances
• A selection of 10 reticle shapes in 9 color modes
• Mounting on standard 30 mm rings
• Instant Start-up
• High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H
• Completely waterproof IPX7
• Operating temperature range: -25 to +50 °C
• High contrast HD AMOLED display
• A selection of 8 color palettes
• Wide-angle eyepiece for comfortable observation
• Photo and video recording
• Stream Vision 2. WiFi integration with iOS and Android devices

Specifications:
• Sensor: 384x288 @ 17 µm (NETD <25 mK)
• Objective lens: F50 F/1.0
• Magnification: 3-12x
• Detection range: 1800 m
• Field of view (HxV), degrees / m@100m: 7.5 / 13.1
• Eye relief: 50 mm
• Type: Uncooled
• Resolution: 384x288 Pixels
• Pixel pitch: 17 µm
• NETD: <25 mK
• Frame rate: 50 Hz
• Type: AMOLED
• Resolution: 1024х768 Pixels
• Click value H/V(mm at 100 m): 13 – 3х 6.5 – 6х 3.25 – 12
• Click range H/V(mm at 100 m): 2600 / 2600
• Number of preloaded reticles: 10+
• Video / photo resolution: 1024x768 Pixels
• Video / photo format: .mp4 / .jpg
• Built-in memory: 16 GB
• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz
• Degree of protection, IP code (IEC60529): IPX7
• Operating temperature range: -25 – +50 °С
• Max. recoil power on rifled weapon: 6000 Joules
• Compatible mounts: Standard 30 mm Rings
• Supported Application: Stream Vision 2
• Output voltage: 3.7 V
• Battery type: Li-ion APS2
• Capacity: 4900 mAh
• Operating time on battery pack(at t=22°C): 10 hours
• External power supply: 5 V /9 V (USB Type-C Power Delivery)
• Body material: Aluminum
• Dimensions: 420 x 78.5 x 94.5 mm
• Weight: 0.97 Kg

Laser Rangefinder
• Wavelength: 905 nm
• Max. measuring range: 800 m
• Measurement accuracy: ± 1

Warranty period on new thermal optics:
• Pulsar: 3 Year manufacturers warranty
• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
• InfiRay: 2 Year warranty: https://www.infiray.com/uploads/file/after-sales-service-policy.pdf

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.

The perfect team for every type of hunt.

The new Leica Geovid Pro models with their numerous features take ethical hunting to a whole new level – observing, identifying, and shooting at all distances has never been safer.

The boost for long shots.

The Leica Geovid Pro 10x42 is the perfect companion for all who hunt at great distances during the day. In the mountains, as well as for long-range sport shooting, its high magnification allows detailed observation. Compact, lightweight, and ergonomically designed, the Geovid Pro 10x42 is ideal for long alpine hunts or long-range adventures abroad.

Ideal for long-range precision.

The Leica Geovid Pro 10x42 measures the equivalent horizontal range (EHR), factoring in barometric pressure, temperature, and terrain features – for accurate, long-range shots up to 2,950 meters. The pre-installed, world-leading Applied Ballistics Ultralight® software calculates the most accurate ballistics values for up to 800 m. In the upgrade version Applied Ballistics Elite®, even up to the maximum range of 2,950 meters. All correction data required for a precise shot is shown on the display of the Geovid Pro 10x42, immediately after measurement.

Optimum observation quality.

The Leica Geovid Pro 10x42 offers the very best in optical performance: high transmission values, excellent lifelike colors, and strong contrasts. The 42-mm lenses and the Perger-Porro prisms deliver outstanding image quality, optimum color fidelity, and exceptional brightness – even under the most challenging conditions. The proven rubber-armored magnesium housing is rugged and protects its high-end interior from the elements, making all Leica Geovid Pro models truly reliable companions.

Leica Geovid Pro 10x42 – the “boost” for your successful hunt.

Anyone who prefers to hunt at long distances needs magnification reserves for detailed observation and reliable identification. The Leica Geovid Pro 10x42 offers you this boost. It is also compact and powerful in terms of optical performance and ballistics solutions. Equipped with a 42-mm lens, a precise Class 1 laser, and the world’s leading Applied Ballistics® software, it enables precise long shots under all conditions. Via the Bluetooth® interface, you can very easily transfer your preferred ballistics profile, which you have preset in the new Leica Ballistics App 2.0, to your Leica Geovid Pro 10x42.

Features

• Ergonomic and state-of-the-art: Leica’s most powerful rangefinder binoculars with ergonomic design for ease of use.
• Ballistics solution on board: Extremely accurate ballistics calculations using an internal atmospheric sensor, integrated Applied Ballistics® data, and wind correction using the Kestrel weather meter.
• Premium laser rangefinder: Extremely precise and fast rangefinding using a built-in Class 1 laser, up to a distance of 2,950 meters (2,300 meters for Geovid Pro 32 models).
• Best optical quality: Leica’s proprietary Perger-Porro prisms and HD objective lenses deliver high transmission values, optimum color contrasts, and high image quality.
• Seamless connection: Thanks to the integrated Applied Ballistics® solution and the Leica Ballistics App 2.0, other devices such as the Kestrel 5700 weather meter can be easily connected via Bluetooth®.

Specifications:

• Device type Rangefinder
• Scope of delivery Contoured neoprene carrying strap, front lens
• cover, eyepiece caps, cordura case, battery
• Magnification 0 x
• Front lens diameter 42 mm
• Exit pupil 4.2 mm
• Twilight factor: 20.5
• Field of view at 1,000 yds/1,000 m 342 ft. / 114 m
• Field of view for spectacle wearers > 312 ft. / > 104 m
• Eye relief 1 16 mm
• Objective angle of view6.45°
• Close distance approx. 16 ft. / 5 m
• Adjustable interpupillary distance 56 to 74 mm
• Diopter compensation ±4 dpt.

Distance measurement

• Range 10 up to approx. 3,200 yds / 2,950 m
• Equivalent horizontal range (EHR) 10 up to approx. 3,200 yds / 2,950 m
• Correction output with Applied Ballistics® Ultralight (default setting) max. 875 yds / 800 m
• Correction output with Applied Ballistics® Elite (upgrade) max. 3.200 yds / 2,950 m

Measuring accuracy ±0.5 m at 10-200 m / 0.5 yds at 10-219 yds

±1.0 m at 200-400 m / 1.0 yds at 219-438 yds

±0.5 % above 400 m / 0.5 % above 438 yds

±0.5 m at 10-200 m / 0.5 yds at 10-219 yds

±1.0 m at 200-400 m / 1.0 yds at 219-438 yds

±0.5 % above 400 m / 0.5 % above 438 yds

• Measuring time max. approx. 0.3 sec.
• Measuring modes Scanning mode, single measurement
• Switchover meter/yards yes
• Ballistic function yes
• On-board wind correction yes
• Output "Equivalent horizontal range" yes
• Output "Unit correction" for elevation and windage yes
• Output "Click correction" for elevation and windage yes
• Applied Ballistics® Ultralight on-board yes
• Bluetooth® interface yes
• Connect to Leica ballistics app yes
• Use customized ballistic profiles yes
• Upgradeable to Applied Ballistics® Elite yes
• BaseMap® yes
• Kestrel® / Garmin® connection yes
• GPS guide LPTTM (Leica ProTrack) yes
• Display LED display with 4 digits, easily legible in any light
• Eyepiece for eyeglass wearers yes
• Eyecups yes, rotary sliding sleeve, detachable, with 4 click-stops
• Prism system Perger-Porro system
• Lens coating HDC® multilayer coating, AquaDura® coating
• Focussing Internal focusing via central drive
• Laser Eye-safe invisible laser according to EN and FDA class 1
• Laser beam divergence 1.8x0.8 mrad
• Baromatric pressure sensor yes
• Temperature sensor yes
• Temperature measurement yes
• Angle sensor yes
• Compass yes
• First destination logics no
• Battery 1 x 3 V / Lithium-type CR2 1
• Battery lifetime Approx. 2,000 measurements at 20°C/68°F
• Watertightness To a depth of 16 ft / 5 m
• Housing Magnesium, nitrogen filled
• Dimensions (W x H x D) 4.9x7.0x2.8 inch / 125x178x70 mm
• Weight approx. 35.3 oz / 1,000 g (without battery)

Schmidt & Bender PM II/LP 5-25x56 P4 fine Illuminated Reticle Double Turn 0.1 MRAD Turrets Schmidt and Benders most popular scope, allowing precise shot placement to 2000 meters yet still presenting an exceptionally wide field of view at low power. First focal plane. The first focal plane reticle does not move point of aim and the Milradian Dots stay true to measurement the whole way through the power range of the riflescope. Unlike most long-range variables that offer only a 4x magnification multiple, the 5-25 x 56 provides a full 5x and a wider field of view. Parallax adjustment in a separate turret, completely adjustable from 10 meters to infinity. The illuminated reticle has 11 graduated settings offering precise control relative to ambient light. The scope includes Schmidt & Bender's unique color-coded "Double Turn" elevation knob that gives the shooter instant reference to where the elevation is set. The user will never become "lost" within the adjustment range.

The 5-25 x 56 is offered with 56 MOA of 1/4 MOA clicks, or 273cm (93 MOA) of 1cm clicks
Schmidt and Bender P4 Ret
Dimensions (mm)
A B C D E F
118 44 38.5 92 72 62
G K L
34 42.5 410
Construction
Aluminum tube, 34mm without rail
Hard anodized black surface
Reticle in first focal plane; second focal plane by special order.
Optical data
Magnification: 5 - 25x
Field of view @ 100m: 5.3m - 1.5m
Exit pupil: 10.95mm - 2.28mm
Eye relief: min 85mm
Twilight factor: 14.1 - 37.4
Light transmission: min 90% day & night
Diopter setting: +2 to -3
Elevation adjustment
Elevation increments: 0.1Mrad
Elevation range: 0 - 26 Mrad
Windage adjustment
Windage increments: 0.1Mrad per click
Windage range: ±6 Mrad
General data
Parallax adjustable from 50m to infinity

Reticle illumination:
Settings 1-11: For use in low light conditions
Battery: CR2032, 100+ hour life. Illumination is switched off automatically after six hours to conserve battery
Weight: 1080g
Waterproof to 25m, 300 mbar inner pressure

Train Far, Hunt Responsibly, and Never Miss a shot with the revolutionary Eliminator 6, Burris’ most advanced hunting riflescope to date. Harnessing over 20 years of cutting-edge technology seamlessly integrated into a modern riflescope chassis, the Eliminator 6 empowers hunters to achieve unparalleled accuracy in the most challenging conditions. At the touch of a button, this redesigned marvel ranges and displays the target distance, swiftly calculates the exact aiming point and wind data, all within the scope for heightened situational awareness. Let the all-new Eliminator 6 eradicate guesswork, allowing you to concentrate solely on squeezing the trigger and executing flawless, precise shots every time. Elevate your hunting experience with the epitome of advanced technology – the Burris Eliminator 6.

Features:

• RANGING – At the touch of a button, Eliminator 6 offers instant and precise ranging out to 2000+ yards on reflective targets and 1400 yards on deer hide
• ENVIRONMENTAL MONITORING – Built-in thermometer, barometer, and inclinometer, automatically measuring density altitude (which can also be manually selected).
• BALLISTIC COMPENSATION – Ballistic solutions are built from user data uploaded using the BurrisConnect app. Bluetooth connectivity between the scope and the user’s mobile device allows the user to create an internal DOPE card in the Eliminator 6
• PRECISE AIMING SOLUTIONS – The Eliminator 6 offers a massive 177 aim points with 1/5 MOA precision to ensure reliable point-of-aim/point-of-impact performance.
• COMPREHENSIVE USER INTERFACE – The Eliminator 6 presents up to 10 data points in the HUD. This information is divided into zones that can be turned on or off at the shooter’s preference
• DIGITAL GUARD RAILS – Available for display in the HUD are bullet velocity and bullet energy at the ranged distance. Embodying the “Hunt Responsibly” ethic, these features allow the shooter to recognize when the shot distance may be too far and the velocity/energy too low to ensure an ethical kill.

Specifications:

• Reticles: X177 Eliminator 6 Reticle
• Colour: Black
• Knob Style: Low Capped Knobs
• Illumination: Yes
• Illumination Control: Push-button
• Illumination Settings: Auto or 9 Levels
• Magnification: 4-20x
• Objective Diameter: 52 mm
• Finish: Black
• Focal Plane: Rear Focal Plane
• Main Tube Size: 34 mm
• Field of View: Low 30.5 ft. - High 6.5 ft
• Eye Relief: 3.4 in.
• Exit Pupil (low - high): 8.6 - 2.9 mm
• Click Value: 1/8 MOA
• Elevation Adjustment, Total Capability: 40 MOA
• Windage Adjustment: 40 MOA
• Parallax/Focus: Side Focus
• Parallax: 25 yds. - infinity
• Length: 14.6 in.
• Weight: 30 oz.
• Battery: Scope CR123A x 1 | Remote CR2032 x1

Key Features

• NETD <20mK Detector
• 640×512@12µm Resolution
• Full HD 0.5'' AMOLED 1600×1200 Display type
• 2600m/2800yd Detection range
• up to 1500m Laser range
• IP67 Encapsulation

The Guide TJ LRF Pro Series is equipped with a 12µm high-sensitivity infrared detector, providing clear and realistic visibility of targets in low-light conditions. Its 0.5” large AMOLED display delivers a visual experience comparable to a home theatre. Furthermore, the integrated 1500m laser rangefinder, which can be activated with a single button, enhances the safety and ease of your explorations.

The TJ LRF Pro Series features an advanced 12µm infrared detector with a NETD of 20mK, enabling it to detect minute temperature differences even in total darkness. Its large 1600 x 1200 AMOLED display offers an exceptional visual experience, similar to watching a 90” home theatre screen from 2.5 metres away, enhancing both image clarity and viewing comfort.

The TJ LRF Pro Series provides flexibility with its various focal lengths, making it perfect for long-range observation and hunting. The 50mm F1.0 lens can identify targets up to 2600 metres away, while the 35mm F1.0 lens has a detection range of 1800 metres.

Utilising standard 18650 batteries with an integrated safety circuit protection design, you simply need to ensure the positive and negative poles of the two cells are positioned oppositely during replacement. This makes the process easier and minimizes the need for identification and memorisation.

The device is user-friendly for both left and right-handed operation, with easily interchangeable eye masks and hand straps. It also features photo and video capture capabilities, complete with a built-in microphone for audio recording.

Features

• 12µm advanced thermal detector, NETD down to 20mK
• Stunning visual effects like a 90” home theatre at 2.5m distance
• Laser Range Finder up to 1500m
• Video recording including sound
• 0.5" AMOLED display, top-notch visual effect
• 50mm F1.0 lens
• 1800m/2600m detection range
• Unique design for easy operation in the dark
• Ambidextrous design
• Video recording including sound

Specifications

Sensor

• Type Uncooled VOx Infrared Detector, 8 to 14µm
• Resolution 640×512@12µm
• NETD 20mK
• Frame rate 50Hz

Lens

• Objective lens 50mm, F1.0
• Field of view 8.8°×6.6°
• FOV m@100m 15x12
• Magnification 4.73x~37.84x
• Detection range 2600m/2800yd

Display

• Display type 0.5'' AMOLED 1600 x 1200
• Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece Exit pupil distance 16 mm; Diopter: -6 to +6; Zoom: 18x

Hardware

• Laser rangefinder 1500m/1630yd
• WIFI 2.4G, 5G
• Interface USB Type-C (Power supply/USB2.0)
• Others Microphone, Compass, Gyroscope, Bluetooth

System

• Recording function Photo/Video (Audio recording included)
• Memory capacity 64GB

Power

• Battery type 2 replaceable 18650 batteries
• Operating time 9 hours

Environmental

• Operating temp. -30°C to 55°C / -22°F to +131°F
• Encapsulation IP67

Physical

• Weight (g/oz) 618/21.80
• Size (mm/in) 247 x 101 x 70/9.72 x 3.98 x 2.76
• Optional Bluetooth remote control, 18650 battery

Included

• Guide TJ LRF Pro Handheld Thermal Imaging Monocular
• Wrist strap
• Battery charger
• 18650 battery x 2, 5V2A adapter (US, Britain, Australia and Europe)
• USB Type-C cable
• Quick use guide
• Guide warranty card

Guide TR650 Thermal Scope

The thermal scope TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR thermal scope Series offers sharp, detailed images with 640 × 480 IR resolution while retaining accuracy. TR thermal hunting scopes feature a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.

This Thermal imaging unit runs with 18650 Button top type batteries (174169) or (454065)

Thermal Scope Key Features

• 640×480IR resolution
• 50mm F1.0 Focal length
• 8.73°×6.60°FOV
• 1024×768 OLED display
• External LRF (laser Rangefinder) that can measure up to 600m
• Extended Picatinny Mount

Enduring performance, day and night.

Main Thermal Scope Features

• 8 hours super long battery life: Standard 18650 battery provides enough power for up to 8 hours of operation time, ensuring continuous observation without disruptions
• Photo and video recording: Photo and video functions to record wonderful moments at any time,, easy to share
• High definition detector: TR series uses high-quality 12um thermal imaging detectors with 640x480 resolution to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions
• One-touch Freeze: Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
• External Laser Range Finder (LRF): With an external laser range finder, the TR series can achieve 600 meters of accurate distance measurement for quick target searching, allowing for direct connection on boot without manual pairing.
• Six Colour Palettes: The 6 colour palettes improve viewing under various conditions. White Hot, Black Hot, and Red Hot are optimal for object detection. Green Hot, Iron Red, and Blue Hot help increase chances for recognition and identification.
• IP67 Protection Rating: With IP67 waterproof and dustproof rating, the TR Series works in high humidity and heavy rain conditions and protects from dust and impact, which features exceptionally high shock resistance up to 800G.
• ?OTA Upgrade: Support device firmware updates by connecting TargetIR for high efficiency.

Thermal Scope Specifications

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14 µm
• Resolution: 640×480, 12 µm
• NETD: =30mK
• Frame rate: 50 Hz

Lens

• Focal length: 50 mm, F1.0
• Field of view: 8.73°×6.60°
• Optical zoom: 2.8x
• Digital zoom: 1x ~ 8x
• Focus: Manual

Display

• Display type: 0.39’’ AMOLED
• Resolution: 1024×768
• Eyepiece: Exit pupil distance = 48 mm; Diopter ± 4; Zoom: 14x
• Video output : Analog video

Range Performance

• Detection range: 2000 m

Functions

• Scene modes: Enhanced, Highlight and Natural
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
• Recording function: Photo/Video
• WIFI: 2.4G
• Supported Application: TargetIR
• Firmware OTA: Upgrade device firmware via app connection
• Others: PIP, Hot spot tracking, Rough ranging

Power

• Battery type: Single, replaceable 18650 battery
• Operating time: = 8 hours

Interface

• USB: USB Type-C
• Mechanical interface: Picatinny

System

• Language settings: English / Russian / German / French / Italian / Spanish / Japanese / Korean
• Memory capacity: 32GB

Environmental

• Operating temperature: -30°C to 50°C
• Storage temperature: -45°C to 70°C
• Humidity: 10 % to 95 % non-condensing
• Shock: 800 G at 1 ms half sine pulse (as per IEC60068-2-27)
• Drop: 1m
• Encapsulation: IP67
• Certification: IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3

Physical

• Weight : =590 g
• Size: 219×88×66 mm

Included in box...

• Guide TR650
• External LRF
• Extended Picatinny Base
• Type C cable
• 5V 2A adapter
• 18650 battery
• Battery charger
• Lens cap
• Eye mask
• Quick start guide
• Warranty card

Guide TU435L 3.0 400x300 35mm Thermal Scope Laser Rangefinder

The TU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.

Hyper-Light Algorithm Ultra-Premium Visuals

Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.

Lightweight Design Compact Housing

Compared to the previous generation, TU LRF 3.0 adopts a more compact and lightweight design, making it over 200g lighter than its predecessor with the same configuration. Its slim, metallic housing provides a comfortable grip.

Shutterless Design Uninterrupted Visuals

The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration.

Locate with Accuracy Up to 1500m

The TU LRF 3.0 Series integrates a precise laser rangefinder that can easily locate prey up to 1,500 meters, assisting hunters in achieving a successful hunt in the field.

Seamless Control Easy Focus & Zoom

Built on extensive field testing and hunter feedback, TU LRF 3.0 was refined in every detail—from the focus wheel to the zoom lever and button layout. The ergonomic design is crafted for comfort and intuitive control.

Specifications for Guide TU435L 3.0 400x300 35mm Thermal Scope Laser Rangefinder:

Sensor:

• Type: Uncooled VOx Infrared Detector, 8 to 14µm
• Resolution: 400×300@12µm
• NETD: 20mK
• Frame rate: 50 Hz

Lens:

• Objective lens: 35mm, F1.0
• Field of view: 7.4°×4.4°
• FOV m@100m: 13×8
• Magnification: 4.4x~17.6x
• Detection range: 1800m/1950yd
• Focus: Manual

Display:

• Display type: 0.49'' AMOLED 1920×1080
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 48mm; Diopter -5 to +5; Zoom: 14x

Hardware:

• Laser rangefinder: 1500m/1630yd
• WIFI: 2.4G, 5G
• Interface: USB-C (Charge/USB2.0)
• Tube diameter: Standard 30 mm
• Others: Microphone, Bluetooth

System:

• Recording function: Photo/Video (Audio recording included)
• Memory capacity: 128GB

Power:

• Battery type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
• Operating time: 12 hours

Environmental:

• Operating temp.: -20°C to 50°C / -4°F to +122°F
• Shock: 6000J/1200G
• Encapsulation: IP68

Physical:

• Weight (g/oz): 780/27.51
• Size (mm/in): 374×89×82/14.72×3.50×3.23
• Standard: Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card

The new Eliminator 5 is the most innovative and effective hunting riflescope in the world. With the push of a button, the Eliminator 5 ranges and displays the distance to the target, instantly calculates and displays the exact aiming point and wind data all inside the scope for complete situational awareness. No need for wasting time with separate rangefinders, apps, or smartphones. The Eliminator significantly increases your effectiveness as a hunter and eliminates the guesswork when seconds count.

The Eliminator 5 is capable of ranging out to 2,000 yards and includes the best optical system in an Eliminator yet with 5-20x magnification and super clear glass!

Four tools in one advanced optics including: precision optics, an internal digital inclinometer, a smart dope card, and a built-in laser range finder.

• Range out to 2,000 yards
• Bluetooth Remote for easy use
• 5-20 Magnification
• All-in-one: Rangefinder, inclinometer, smart dope card, and precision riflescope

Specifications:

• Item Number  200155
• Reticle  X96
• Knob Style  Capped Hunter
• Illumination  No
• Magnification  5-20x
• Objective Lens Diameter  65mm
• Clear Objective Lens Diameter  50mm
• Ocular Lens Diameter  42mm
• Focal Plane  Rear Focal Plane
• Field of View  22 - 5.8 ft
• Eye Relief  3.5 - 4 in
• Exit Pupil  10 - 2.5 mm
• Click Value  1/8 MOA
• Elevation Adjustment, Total Capability  50 MOA
• Windage Adjustment  50 MOA
• Parallax/Focus  30 yds. infinity
• Finish  Matte
• Length  15.5 in
• Weight  28.8 oz
• Illumination Control  Push Button
• Battery  2 x AAA

Combining compact size & weight, the Thermtec Vidar series represents the latest in thermal scope technology. The Vidar series are designed for professional users without compromising on quality.

All models are equipped with Wi-Fi, as well as a photo and video recording capability that supports memory cards with a capacity of up to 64 GB. Thanks to advanced image calibration algorithms (NUC), these thermal imagers have been adapted to silent operation without the use of the shutter to ensure image is continuously displayed during shooting. They have are 6 color palettes, 7 different reticles and 5 autonomous profiles for different calibers or shooting ranges, as well as many additional functions, including the Picture in Picture mode, quick reticle zeroing or the ability to being connected to smartphones

The devices are powered by replaceable lithium-ion batteries (2x 18350 or 2x 18500), which enable up to 10 hours of use. The Vidar series products meet demanding water resistance standards and are IP67 certified.

Compact & Light

Lightweight and extremely compact, the Vidar is the perfect companion on any hunting or observational trip.

Non-Shutter Correction Technology

Invisible, background calibration means the screen will never freeze and there is no noisy shutter to alert your quarry.

Automatic Zeroing

The unique automatic zeroing function is the fastest, simplest zeroing system there is; just take a shot and let the Vidar set zero for you.

Real-time APP Notification

The “Smart Thermal” APP would instantly pop up a notification while

detecting the target to avoid any distraction.

High Thermal Sensitivity

The Vidar’s NETD ≤25mK sensor captures the smallest detail even the target and background are almost at the same temperature.

Automatic Object Detection

The Vidar can detect and identify the target while an object entering its field of view to avoid any miss.

High-Precision Zoom

Smooth & rapid 1.0-5.0X HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification.

Two Way Wi-Fi Connection

Support both Wi-Fi and hotspot connections; Real-time image transmission

64G storage

A 64GB of memory card enables a large storing of photos and videos.

Easy Battery Installation

The battery's anode and cathode can be installed interchangeably, helping users to complete the battery replacement more quickly at night.

IP67 Protection Rate

Provided with IP67-rated weatherproof performance, it is protected from heavy rainfall, snow, smoke, smog, or dust.

Specifications:

• Resolution, pixel   384*288/12
• Spectral   8-14µm
• NETD   ≤25mk
• Frame rate   50HZ
• Objective lens   35mm, F/1.0
• Field of view   7.5°x5.6°
• Magnification   3.2X
• Digital zoom   1 - 5X continuous zoom
• Eye relief   45mm
• Exit pupil   6mm
• Diopter   -5 ~ +5
• Click range, mm @100 m (H/V)   3,6m/3,6m
• Reticle   7
• Rectile color   Black and white
• Display type   AMOLED
• Resolution, pixel   1024x768
• Display size   0.39 inch
• Color palette   6
• Max. recoil power on rifle  600J
• Mounting brackets included  QD Standard Picatinny Rail
• Shooting record   Support
• RAV   Yes
• Auto zeroing   Yes
• Manual zeroing   Yes
• Zeroing profiles   5
• Picture-in-picture   Yes
• Image calibration   Via lens cover
• Photo/video playback   Yes
• Inbuilt memory   64G
• Magnetic interface   Data transfer
• Wi-Fi   Yes
• Replaceable battery   18650x2
• Battery reverse connection   Yes
• Battery life   14h
• Operating temperature   -20℃—+50℃
• IP rating   IP67
• Weight, g   591
• Size, mm   160x60x70

Range Detection

                  Object                              Distance

• 0.2m Tall (Bird)                        200 m
• 0.3m Tall (Rabbit)                    300 m
• 0.5m Tall (Wolf/Dog)                500 m
• 0.7m Tall (Boar)                       700 m
• 1.8m Tall (Human)                 1800 m
• 4.0m Tall (Car)                       3889 m

Included in box:

• Vidar scope
• Allen keys and screw
• Lithium battery (4pcs)
• Magnetic charge cable
• Picatinny rail
• Manual
• Eyepiece hood

The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The GEN II (Gen 2) takes the DNA of the first generation NEXUS and pushes it to another level with a 4-25x Magnification, a new Turret System and Digital Illumination – the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: Simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision.

Element's design team of global competition winners & hunters understand optics and has introduced strict quality control measures to ensure perfect operation under testing conditions. And if something goes wrong? Our Platinum Lifetime Warranty has you covered – No paperwork or registration is required.

MIL CLEAN - APR-1C

MIL TREE - APR-2

Features:

• 30mm Main Body Tube
• Compact, Lightweight design
• Illuminated, First Focal Plane Reticle
• Side Parallax: 10yds-Infinity
• Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
• Tool-free Resettable Turrets with 10 MRAD / 25 MOA per Revolution
• Revolution Indicator
• Tool-Free Mechanical Zero-Stop
• Push-Button Illumination
• Removable Magnification Throw Lever
• Waterproof, Fogproof, Shockproof & Nitrogen Purged
• Sunshade, Aperture Ring & Neoprene Cover included

 Specifications

• Magnification: 4-25x
• Objective Lens Diameter: 50 mm
• Focal Plane: First Focal Plane
• Finish:Black
• Field of View @100m:9.7 - 1.6 m
• Tube Size:30mm
• Exit Pupil:7.1 - 2.0 mm
• Eye Relief:77 - 92 mm
• Minimum Parallax:10 M
• Length: 13.8" / 350 mm
• Weight:30.7oz / 870 g
• TypeMIL
• Click Value: 1/10 MIL
• Full Revolution: 10 MIL
• Elevation Adjustment: 29 MIL
• Windage Adjustment:11.6 MIL
