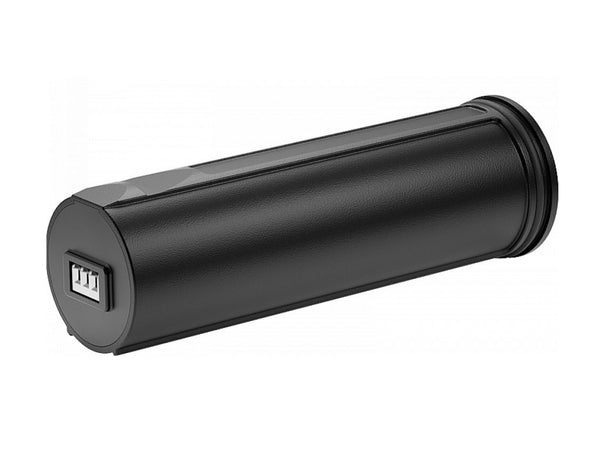

Pulsar APS 3 Battery Pack

Pulsar Merger XT50 Thermal Binoculars with Laser Rangefinder

Thermal performance with class.

The Pulsar Merger LRF represents Pulsar's classic thermal imaging binocular design with an integrated laser rangefinder.

These binoculars are remarkably ergonomic and comfortable. They allow for two-eye observation and reduce eye fatigue. They are equipped with top-tier components that exemplify European quality.

The Merger LRF XT50 is the first pair of thermal imaging binoculars from Pulsar to feature a remarkable 1280×1024, 12µm, <40mK NETD thermal sensor and built-in image stabilisation. These features lend another level of clarity and stability and provide greater observation opportunities without any distractions. Fully kitted out with a wide range of digital functionalities and connectivity options, including a built-in still image and video recorder, Stream Vision 2 compatibility, and a precision laser rangefinder, these binoculars are perfect for long-range, comfortable observation.

Features

European made thermal imaging sensors

Merger LRF Series ensures unrivalled thermal imaging experience. For image capture Merger binoculars use professional-grade, European made thermal imaging sensors:

• 12 micron sensors 1280×1024 and 1024×768 offer high definition image quality.
• 17 micron sensors 640×480 and 384×288 provide extreme thermal sensitivity.

Detailed and sharp image on high zoom

Optical magnification of the unit can be increased by means of digital zoom. Even at the highest level of zoom image detail is sufficient for identifying the smallest object details. Advanced algorithms enhance image quality and help to achieve sharp and detailed image.

Wide field of view

Wide field of view simplifies scanning and spotting hot objects while minimizing effects of image shaking and raising situational awareness. Excellent image detail on base magnification combined with wide field of view ensure improved viewing comfort and scene perception.

Extra-long detection range

Powerful germanium optics combined with professional thermal imaging sensors provide exceptional detection capabilities. Top Merger LRF units can detect hot objects at distances exceeding 2km.

User mode

Use the brightness and contrast adjustments to maximise the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device’s memory providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments needed.

Classic binocular design

Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch.

Comfortable viewing experience with both eyes

The Merger LRF binoculars’ optical design takes into account the nature of human vision. It is natural for a person to receive visual information through two visual channels simultaneously. Viewing with two eyes is less tiring than viewing with one. This means better detection of small or faint objects, and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The interpupillary distance in the Merger LRF binoculars is adjustable from 63 to 74 mm in accordance with the individual characteristics of a particular user.

Precise laser rangefinder

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.

Combined dual battery system

The Merger LRF Series is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees long battery life.

Other Features

• High-quality reinforced magnesium alloy housing
• Built-in photo and video recorder
• Stream Vision 2. Wi-Fi integration with iOS and Android devices
• Improved Wi-Fi connectivity with 2.4 / 5 GHZ waveband support
• High-contrast HD AMOLED displays
• IPX7 Waterproof Rated
• Wide range of operating temperatures (-25 to +50°C)
• A selection of 8 color palettes
• Proximity sensor
• Picture in Picture
• 3 Sensitivity enhancement levels
• Fast aperture F1.0 optics

Specifications

• Main
• Sensor: 1280x1024 @ 12 µm
• Objective lens: F50 / 1.0
• Magnification, x: 2 – 16
• FOV (HxV), degrees: 17.5 х 14
• FOV (HxV), m@100m: 30.7 х 24
• Detection range: 2300 m

Sensor

• Type: uncooled
• Resolution, pixels: 1280x1024
• Pixel pitch, µm: 12
• Sensor NETD, mK: < 40
• Frame rate, Hz: 50

Optics

• Objective lens: F50 / 1.0
• Magnification, x: 2 – 16
• FOV (HxV), m@100m: 30.7 х 24
• FOV (HxV), degrees: 17.5 х 14
• Interpupillary distance adjustment, mm: 62 – 74
• Eye relief, mm: 15

Display

• Type: AMOLED HD
• Resolution, pixels: 1280х960

Laser rangefinder

• Max. measuring range, m: 1500
• Measurement accuracy, m: ± 1
• Safety class for laser equipment according to IEC 60825-1:2014: 1
• Wavelength, nm: 905

Video recorder

• Video / photo resultion, pixel: 1280х960
• Video / photo format: .mp4 / .jpg
• Build-in memory, GB: 64

WI-FI

• Wireless protocol: Wi-Fi
• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, Ghz: 2.4 / 5

Environmental characteristics

• Degree of protection IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range, °С: -25 – +50

Connections and compatibilities

• Mount type: 1/4" socket
• Supported application: Stream Vision 2

Power supply

• Output voltage, V: 3.7
• Battery type: Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
• Capacity, mAh: 3200 (external) + 4000 (internal)
• Operating time on battery pack, h at t=22°С: 8
• External power supply, V: 5V; 9V (USB Type-C Power Delivery)

Weight & size

• Body material: Magnesium alloy
• Dimensions, mm: 197x140x72
• Weight, kg: 0.95 (batteries included)
• SKU: 77486

Pulsar Thermion 2 XL60 2.5-20x Thermal Scope and Laser Rangefinder

High Base Magnification

The Thermion 2 LRF XL60 boasts an impressive 2.5x base magnification with a maximum of up to 20x, providing precision and clarity for long-range shooting. With its 60mm lens, the new Thermion offers a wider field of view, enhancing situational awareness and presenting more potential target opportunities to the keen-eyed hunter. Whether spotting or engaging targets, this scope ensures unparalleled accuracy at extreme distances.

Customizable User Mode for Individual Image Adjustment

Optimize image quality for any observation conditions with brightness and contrast adjustments, enhancing detail and clarity. The User Mode function saves your preferred settings, ensuring the thermal imager delivers optimal performance right from the start without the need for readjustments.

Extra-Long Detection Range

The Thermion 2 LRF XL60 is capable of detecting heat signatures up to an extraordinary 3,062 yards away. With its superior optics and advanced thermal technology, the Thermion 2 LRF XL60 ensures no target goes unnoticed at extreme ranges. This makes it ideal for hunting across vast, open plains or for predator control in pastures or barren prairies, where hunters have a wide field of view.

Crisp 2560x2560 Micro-OLED Display

Experience unmatched clarity with Pulsar’s highest-resolution display yet. The 2560x2560 Micro-OLED screen delivers sharp, vivid visuals for precise target identification and greater situational awareness, making every detail crystal clear

Flexible Set of Color Palettes for Various Needs

The Thermion 60 series’ 2560x2560 Micro-OLED display has enhanced color rendering, power saving, high contrast and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions. A choice of 8 color palettes lets the users observe their field of view more effectively, allowing them to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Combined Duel Battery System

The Thermion 2 is powered by both an internal and an external battery, both of which are rechargeable. The package includes replaceable batteries with 2 A·h and 3.2 A·h capacities, providing up to 10 hours of continuous operation on a single charge. Embossed markings on the replaceable batteries allow for quick and confident battery swaps, even in complete darkness, by touch alone.

ADM 30mm Cantilever Mount Included

The Thermion 2 60mm Kit includes a 30mm QD Recon Mount by American Defense Manufacturing. This cantilever-style mount is designed for scopes with objective lenses up to 56mm and provides forward positioning for optimal eye relief. Crafted with precision from 6061 T6 aluminum, it features a durable hard coat T3 Mil-Spec anodized finish, ensuring reliability and toughness in the field. The mount's height accommodates additional accessories, such as lasers or lights, that can be installed beneath the optic, offering versatility without compromising performance.

More Features for Pulsar Thermion 2 XL60 2.5-20x Thermal Scope and Laser Rangefinder:

• Mounts on Standard 30mm Rings: The Thermion offers visual aesthetics combined with convenience. Mounted with standard 30mm rings, this unit does not require any special mounting hardware and can be easily swapped out for an existing daytime scope.
• High-Caliber Recoil Resistance: Engineered to withstand the recoil of heavy calibers, the Thermion 2 LRF is rated for 12-gauge shotguns and .375 H&H rifles, offering durability and performance under the harshest conditions.
• 10 Shooting Profiles / 100 Zeroing Distances: Zeroing settings are saved in a shooting profile. The Thermion 2’s memory contains up to 10 shooting profiles for several types of weapons or cartridges. Each profile holds up to 10 zeroing distances input manually, but can be transformed into automatic ballistic calculations based on measured distance using the Stream Vision ballistics app.
• High-Precision Aiming in "Picture-in-Picture" Mode: The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to see the image in the aiming area and have visual control of the entire field of view at the same time.
• Operation in Extreme Temperatures -25 to +50 Degrees: The housing, power unit, optics and electronic components of the Thermion 2 are designed to operate in a wide range of temperatures and adverse environmental conditions. The Thermion 2 ensures reliable and effective performance in freezing cold up to -25°C.
• Stream Vision 2. Wi-Fi Integration with IOS and Android Devices: Built-in Wi-Fi connects the Thermion 2 LRF 60 series riflescope to Android and iOS devices through the Stream Vision 2 app, enabling wireless updates, real-time image streaming, remote control, and easy sharing of photos and videos. Registered users also get 16 GB of free cloud storage for their recordings and access to the latest Pulsar updates.

Specifications for Pulsar Thermion 2 XL60 2.5-20x Thermal Scope and Laser Rangefinder:

Main

• Sensor: 1024x768 @ 12 µm (NETD <35 mK)
• Objective Lens: F60 / 1.0
• Magnifications: 2.5 – 20
• Field of View (HxV) Degrees / m@100m: 11.7° / 20.5 m
• Detection Range (m): 2800

Sensor

• Type: uncooled
• Resolution, pixels: 1024x768
• Pixel Pitch: 12
• NETD, mk: <35
• Frame Rate, HZ: 50

Optics

• Objective Lens: F60 / 1.0
• Magnification: 2.5 – 20
• Field of view (HxV), degrees / m @ 100 m: 11.7° / 20.5 m
• Eye Relief: 65

Display

• Type: AMOLED
• Resolution, pixels: 2560x2560

Laser Rangefinder

• Safety class for laser equipment according to IEC 60825-1:2014: 1
• Wavelength, nm: 905
• Max. measuring range,m: 800
• Measurement accuracy, m: ± 1

Reticle

• Click value, H/V, mm at 100 m: 16 / 16
• Click range, H/V, mm at 100 m: 3200 / 3200
• Number of preloaded reticles: Software defined

Video Recorder

• Video / photo resolution, pixel: 2560x2560
• Video / photo format: .mp4 / .jpg
• Built-in memory, GB: 64

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac

Power Supply

• Output voltage, V: 5.0V / 9V
• Battery type: Built-in + replaceable APS3 B-pack
• Battery life, hours: 7

Environmental Characteristics

• Degree of protection, IP code (IEC60529): IPX7
• Operating temperature range, °?: -25 – +50

Weight & Size

• Body material: Metal
• Dimensions, mm: 442x84x98
• Weight, kg: 1.16

The first thermal imaging riflescope with classic design and built-in laser rangefinder

The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 metres – the Thermion 2 LRF provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.

Features:
• Variable magnification
• High-precision aiming in the "Picture-in-picture" mode
• 5 individual shooting profiles / 50 zeroing distances
• A selection of 10 reticle shapes in 9 color modes
• Mounting on standard 30 mm rings
• Instant Start-up
• High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H
• Completely waterproof IPX7
• Operating temperature range: -25 to +50 °C
• High contrast HD AMOLED display
• A selection of 8 color palettes
• Wide-angle eyepiece for comfortable observation
• Photo and video recording
• Stream Vision 2. WiFi integration with iOS and Android devices

Specifications:
• Sensor: 384x288 @ 17 µm (NETD <25 mK)
• Objective lens: F50 F/1.0
• Magnification: 3-12x
• Detection range: 1800 m
• Field of view (HxV), degrees / m@100m: 7.5 / 13.1
• Eye relief: 50 mm
• Type: Uncooled
• Resolution: 384x288 Pixels
• Pixel pitch: 17 µm
• NETD: <25 mK
• Frame rate: 50 Hz
• Type: AMOLED
• Resolution: 1024х768 Pixels
• Click value H/V(mm at 100 m): 13 – 3х 6.5 – 6х 3.25 – 12
• Click range H/V(mm at 100 m): 2600 / 2600
• Number of preloaded reticles: 10+
• Video / photo resolution: 1024x768 Pixels
• Video / photo format: .mp4 / .jpg
• Built-in memory: 16 GB
• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GHz
• Degree of protection, IP code (IEC60529): IPX7
• Operating temperature range: -25 – +50 °С
• Max. recoil power on rifled weapon: 6000 Joules
• Compatible mounts: Standard 30 mm Rings
• Supported Application: Stream Vision 2
• Output voltage: 3.7 V
• Battery type: Li-ion APS2
• Capacity: 4900 mAh
• Operating time on battery pack(at t=22°C): 10 hours
• External power supply: 5 V /9 V (USB Type-C Power Delivery)
• Body material: Aluminum
• Dimensions: 420 x 78.5 x 94.5 mm
• Weight: 0.97 Kg

Laser Rangefinder
• Wavelength: 905 nm
• Max. measuring range: 800 m
• Measurement accuracy: ± 1

Warranty period on new thermal optics:
• Pulsar: 3 Year manufacturers warranty
• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty
• InfiRay: 2 Year warranty: https://www.infiray.com/uploads/file/after-sales-service-policy.pdf

Please note: Manufacturers warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period that what is specified for the units above. The warranty does not cover mis-use or accidental damage caused by the operator.

Pulsar Axion XG35 Compact Thermal Imaging Monocular

Get more for less.

Enter the world of thermal vision with the Pulsar Axion thermal imaging monoculars. Pulsar's most compact and affordable devices are perfect for those hunters who wish to explore the possibilities of thermal vision without breaking the bank.

The Pulsar Axion XG30 Compact is a great tool for close-range observation in areas with thick vegetation. Fitting in one hand and light to carry, they still offer high thermal sensitivity and other premium features, including Wi-Fi connectivity and our latest image processing algorithms.

Features

European made thermal imaging sensors

• Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions. An 640×480/12 micron sensor provides enough detail for hot object identification.

Pocket-sized dimensions and light weight

• Axion monoculars have a space-saving and pocket-sized design and weights less than 300 grams, which makes them the best thermal imaging monoculars for those who look for a truly compact option, both in hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

Wide field of view for easy scanning

• Axion Compact monoculars have wide field of view which simplifies scanning and searching for hot objects. Wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping all scene in view.

Photo and video recording

• The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. Internal memory of the unit ensures many hours of recorded video and tons of photos.

Rugged magnesium alloy housing

• Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Sensitivity amplification levels

• 3 amplification levels combined with new filtration algorithms and fine brightness and contrast adjustments, increase the hunter’s chances for early detection of the animals under heavy weather and high humidity conditions. These settings provide optimized rendering of the target and background objects in the observation scene.

A selection of 8 color palettes

• A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2 app support for iOS and Android

• The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

Other Features

• Frost-resistant AMOLED Display
• Long-life removable battery
• Charging with USB Type-C
• Picture-in-Picture Function
• IPX7 Waterproof rated
• User mode
• Digital zoom
• Tripod mount 1.4”

Specifications

Main

• Sensor: 640x480 @ 12 µm
• Objective lens: F35/1.0
• Magnification: 2.5 – 20 (x8 zoom)
• FOV (HxV), degrees: 12.5° x 7.8°
• FOV (HxV), m@100m: 21.9° x 13.7°
• Detection range: 1750m

Sensor

• Type: uncooled
• Resolution, pixels: 640x480
• Pixel pitch, µm: 12
• Sensor NETD, mK: < 40
• Sensor NETD, mK: < 20
• Frame rate, Hz: 50

Optics

• Objective lens: F35/1.0
• Magnification, x: 2.5 - 20 (x8 zoom)
• FOV (HxV), m@100m: 12.5° x 7.8°
• FOV (HxV), degrees: 21.9° x 13.7°

Display

• Type: AMOLED
• Resolution, pixels: 640x480
• Range performance
• Detection range, m: 1750

Video recorder

• Video / photo resolution, pixel: 960x600
• Video / photo format: .mp4 / .jpg
• Build-in memory, GB: 64

WI-FI

• Wireless protocol: Wi-Fi
• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, Ghz: 2.4 / 5

Environmental characteristics

• Degree of protection: IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range, °c: -20°C - +40°C

Connections and compatibilities

• Mount type: 1/4" socket
• Supported application: Stream Vision 2

Power supply

• Output voltage, V: 3.0 – 4.2
• Battery type: Li-Ion Battery Pack APS 3
• Capacity, mAh: 3200mAh
• Operating time on battery pack, h at t=22°c: 7 Hours
• External power supply, V: 5 (USB Type C)

Weight & size

• Body material: Magnesium alloy
• Dimensions: 146 x 49 x 71mm
• Weight, kg: 0,28 (without battery)

Pulsar Axion XG30 Compact Thermal Imaging Monocular

Get more for less.

Enter the world of thermal vision with the Pulsar Axion thermal imaging monoculars. Pulsar's most compact and affordable devices are perfect for those hunters who wish to explore the possibilities of thermal vision without breaking the bank.

The Pulsar Axion XG30 Compact is a great tool for close-range observation in areas with thick vegetation. Fitting in one hand and light to carry, they still offer high thermal sensitivity and other premium features, including Wi-Fi connectivity and our latest image processing algorithms.

Features

European made thermal imaging sensors

Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions.

• 640×480/12 micron sensor provides enough detail for hot object identification.
• 384×288/17 micron sensor ensures thermal sensitivity.

Pocket-sized dimensions and light weight

Axion monoculars have a space-saving and pocket-sized design and weights less than 300 grams, which makes them the best thermal imaging monoculars for those who look for a truly compact option, both in hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

Wide field of view for easy scanning

Axion Compact monoculars have wide field of view which simplifies scanning and searching for hot objects. Wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping all scene in view.

Photo and video recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. Internal memory of the unit ensures many hours of recorded video and tons of photos.

Rugged magnesium alloy housing

Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Sensitivity amplification levels

3 amplification levels combined with new filtration algorithms and fine brightness and contrast adjustments, increase the hunter’s chances for early detection of the animals under heavy weather and high humidity conditions. These settings provide optimized rendering of the target and background objects in the observation scene.

A selection of 8 color palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2 app support for iOS and Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

Other Features

• Frost-resistant AMOLED Display
• Long-life removable battery
• Charging with USB Type-C
• Picture-in-Picture Function
• IPX7 Waterproof rated
• User mode
• Digital zoom
• Tripod mount 1.4”

Specifications

Main

• Sensor: 640x480 @ 12 µm
• Objective lens: F30/1.2
• Magnification: 2 – 16 (x8 zoom)
• FOV (HxV), degrees: 14.6 x 9.2
• FOV (HxV), m@100m: 25.6 x 16.0
• Detection range: 1300

Sensor

• Type: uncooled
• Resolution, pixels: 640x480
• Pixel pitch, µm: 12
• Sensor NETD, mK: < 40
• Frame rate, Hz: 50

Optics

• Objective lens: F30/1.2
• Magnification, x: 2 – 16 (x8 zoom)
• FOV (HxV), m@100m: 25.6 x 16.0
• FOV (HxV), degrees: 14.6 x 9.2

Display

• Type: AMOLED
• Resolution, pixels: 640x480

Range performance

• Detection range, m: 1300

Video recorder

• Video / photo resolution, pixel: 960х600
• Video / photo format: .mp4 / .jpg
• Build-in memory, GB: 64

WI-FI

• Wireless protocol: Wi-Fi
• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, Ghz: 2.4 / 5

Environmental characteristics

• Degree of protection: IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range, °С: -20 - +40

Connections and compatibilities

• Mount type: 1/4" socket
• Supported application: Stream Vision 2

Power supply

• Output voltage, V: 3.0 – 4.2
• Battery type: Li-Ion Battery Pack APS 3
• Capacity, mAh: 3200
• Operating time on battery pack, h at t=22°С: 7
• External power supply, V: 5 (USB Type C)

Weight & size

• Body material: Magnesium alloy
• Dimensions, mm: 144x41x69
• Weight, kg: 0,24 (without battery)

The NEW LEVEL OF THERMAL SPOTTING. A full featured, extra sensitive, ultra compact monocular, the Axion XQ30 Pro monocular is packed with qualities tailored to meet the needs of hunters and outdoor adventurers.

The Axion XQ30 Pro Thermal Monocular from Pulsar was designed for first-time users and seasoned outdoor enthusiasts alike, setting a new standard for thermal imaging monoculars, providing exceptional performance and a robust set of features in an ultra-compact body. It measures just 5.6x1.6 inches, making it the smallest thermal monocular in Pulsar’s lineup. Despite its compact size, it boasts a professional grade European made 384x288 thermal imaging sensor with NETD <25 mK, delivering unmatched sensitivity and detailed thermal images. These features ensure superior image quality for a variety of outdoor applications. Key features include digital zoom, Picture-in-Picture mode, eight color palettes, onboard multimedia suite and Wi-Fi connectivity. Built for the rigors of outdoor use, the Axion XQ30 Pro features a robust, waterproof housing, ensuring reliable performance in all weather conditions.

Features

Highly sensitive thermal imaging sensor

For image capture Axion XQ30 Pro uses professional-grade thermal imaging sensor with 384x288 pixels resolution and less the 25 mK thermal sensitivity. This ensures low levels of noise while providing excellent image detail and high contrast.

Wide field of view for easy scanning

Axion XQ30 Pro possesses 13.3° field of view which simplifies scanning and searching for hot objects. Wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping all scene in view.

Compact pocket-sized design

Axion XQ30 Pro has a compact pocket-sized design and fits perfectly into one’s hand. It is an ideal option for hunting and tourism. The symmetrical design of the unit in combination with top placement of buttons ensures comfort of left- and right-hand use.

Rugged magnesium alloy housing

Axion XQ30 Pro is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time a metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Photo and video recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 Gb of internal memory provide many hours of recorded video and tons of photos.

Sensitivity amplification levels

3 amplification levels combined with new filtration algorithms and fine brightness and contrast adjustments, increase the hunter’s chances for early detection of the animals under heavy weather and high humidity conditions. These settings provide optimized rendering of the target and background objects in the observation scene.

A selection of 8 color palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2 app support for iOS and Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

Frost-resistant AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

Long-life removable battery

A quick-change APS3 rechargeable battery provides 7 hours of continuous operation of the thermal imaging device on a single charge. The battery is removed from a battery housing and replaced with a new one in seconds. The battery is charged in a special device or inside the device from a PC, household power system or power bank via USB. The same sources are used for external power supply of a thermal imaging device.

Fast charging with USB Type-C

The unit can be quickly charged with any charger supporting power delivery protocol via ordinary USB Type-C power cable.

IPX7 Waterproof rated

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Picture-in-Picture Function

Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise zooming on an object of interest.

Specifications:

Main

• Sensor: 384x288 pix. @ 17 µm (NETD <25 mK)
• Objective lens: F30/1.2
• Magnification: 2 - 8x (x4 zoom)
• Magnification in monocular mode / attachment mode, x -
• Field of view (HxV): 13.3x10 / 23.3?17.5 degrees / m@100m
• Detection range: 850m
• Sensor
• Type: uncooled
• Resolution: 384x288 pixels
• Pixel pitch: 17 µm
• NETD: <25 mK
• Frame rate: 50 Hz

Optics

• Objective lens: F30/1.2
• Magnification: 2 - 8x
• Magnification in monocular mode / attachment mode, x -
• Field of view (HxV): 13.3 degrees / m @ 100 m
• Eye relief: -
• Recommended magnification of the day scope, x

Display

• Type: AMOLED
• Resolution: 640x400 pixels

Range Performance

• Detection range: 1050m

Video Recorder

• Video / photo resolution: 528?400 pixel
• Video / photo format: .mp4 / .jpg
• Built-in memory: 16GB

Wi-Fi

• Wireless Protocol: Wi-Fi
• Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 GGHz

Environmental Characteristics

• Degree of protection, IP code (IEC60529): IP?7 (waterproof)
• Operating temperature range: -25 – +40 °?

Connections and Compatibilities

• Compatible mounts: tripods
• Mount, type: 1/4"
• Remote control: -
• Supported Application: Stream Vision 2

Power Supply

• Output voltage: 4.2-3.0 V
• Battery type: Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h)
• Capacity: 3200 mAh
• Operating time on battery pack (at t=22°C), h *: 8h
• External power supply: 5V (USB)

Weight & Size

• Body material: Magnesium alloy
• Dimensions: 144x41x69mm
• Weight: 0.3kg (with battery)

Trade Data

• SKU (Model #) : 77506

Pulsar IPS14 Battery Pack is an interchangeable standard power supply for Trail, Helion, Digisight Ultra, Accolade and Forward units. It grants 21-26 hours operating time and has a smart charging feature as well.

Specifications:
• Type: Li-Ion
• Capacity: 12,888 mAh
• Operating time: 21-26 h (with Helion)
• Weight: 240 g
• Dimensions: 73 x 47 x 50 mm
• Output voltage: 3.7 V
• Full charge time: 12 hours.

Pulsar APS 5 Battery Charger

Is designed to charge battery packs APS 5 used with thermal imaging monoculars Axion XQ / Axion XQ LRF.

Interchangeable standard power supplies for Axion (APS3) and Thermion (APS2, APS3) devices.

Miniature power elements used in Axion and Thermion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.

Specifications:
• Dimensions: 74x24x24
• Weight: 0.06 kg
• Output voltage: 3.6 V
• Battery type: Li-ion
• Capacity: 3200 mAh
• Compatibilities: Axion models

Note - These can also be used in the Thermion/Digex Style Optics, there is a taller battery cap that comes in the box with these optics to accommodate for the extra length.

The Pulsar APS 2 Battery Pack is an interchangeable standard power supply for Pulsar Thermion devices. The miniature power elements used in Axion and Thermion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.

Specifications:
• Dimensions: 59 x 24 x 24
• Weight: 0.04 kg
• Outpout Voltage: 3.6 V
• Battery Type: Li-Ion
• Capacity: 2000 mAh
• Compatible With: Pulsar Thermion/Digex (NOT AXION)

APS 5T rechargeable lithium-ion power supplies are designed for use with thermal imaging riflescopes Pulsar Talion.

APS 5T batteries support USB Power Delivery fast charging technology when using a standard charging set (charger, USB Type-C cable, power adapter).

Specifications:

• Model: APS 5T
• SKU: 79188
• Type: Li-ion
• Nominal capacity at +22°С (72°F): 4900 mAh
• Rated voltage: 3.7 V
• Charge/discharge cycles, minimum*: 500
• Dimensions: 92 × 25 × 25 mm
• Weight: 0.08 kg (2.9 oz)

Miniature power elements used in Axion XM, Axion XQ, Digex and Thermion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.This is the same battery that ships with the Axion XQ monoculars. This battery does NOT fit any other Pulsar product. Grants up to 6 hours operating time.
